YRC-HS007 Fast Sintering Furnace
Features
Technical Data
Get Advice Now
Features
40-Minute Fast Sintering

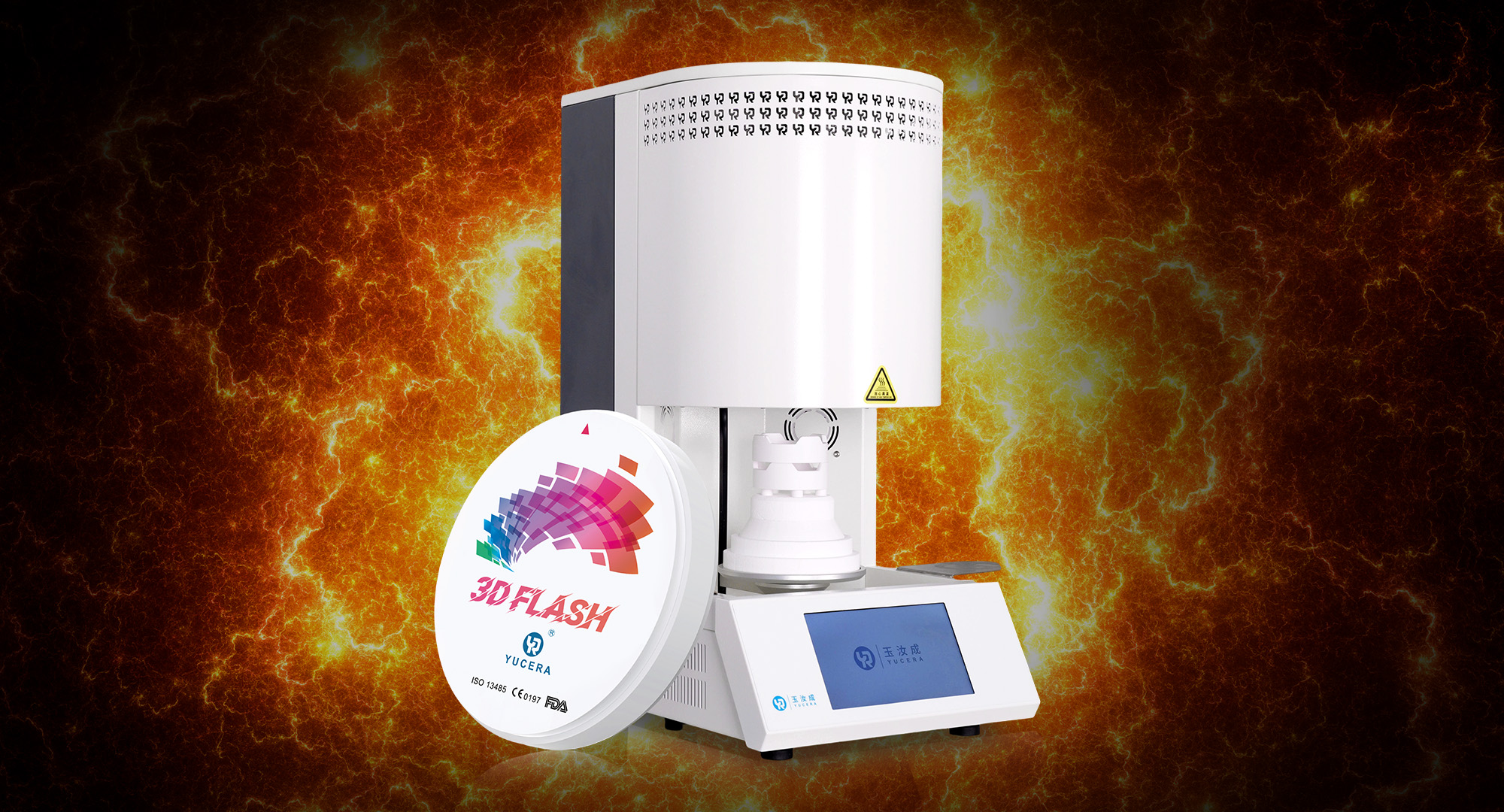

40-Minute Sintering with Yucera 3D FLASH Zirconia Blocks
Capacity: 60 single crown.

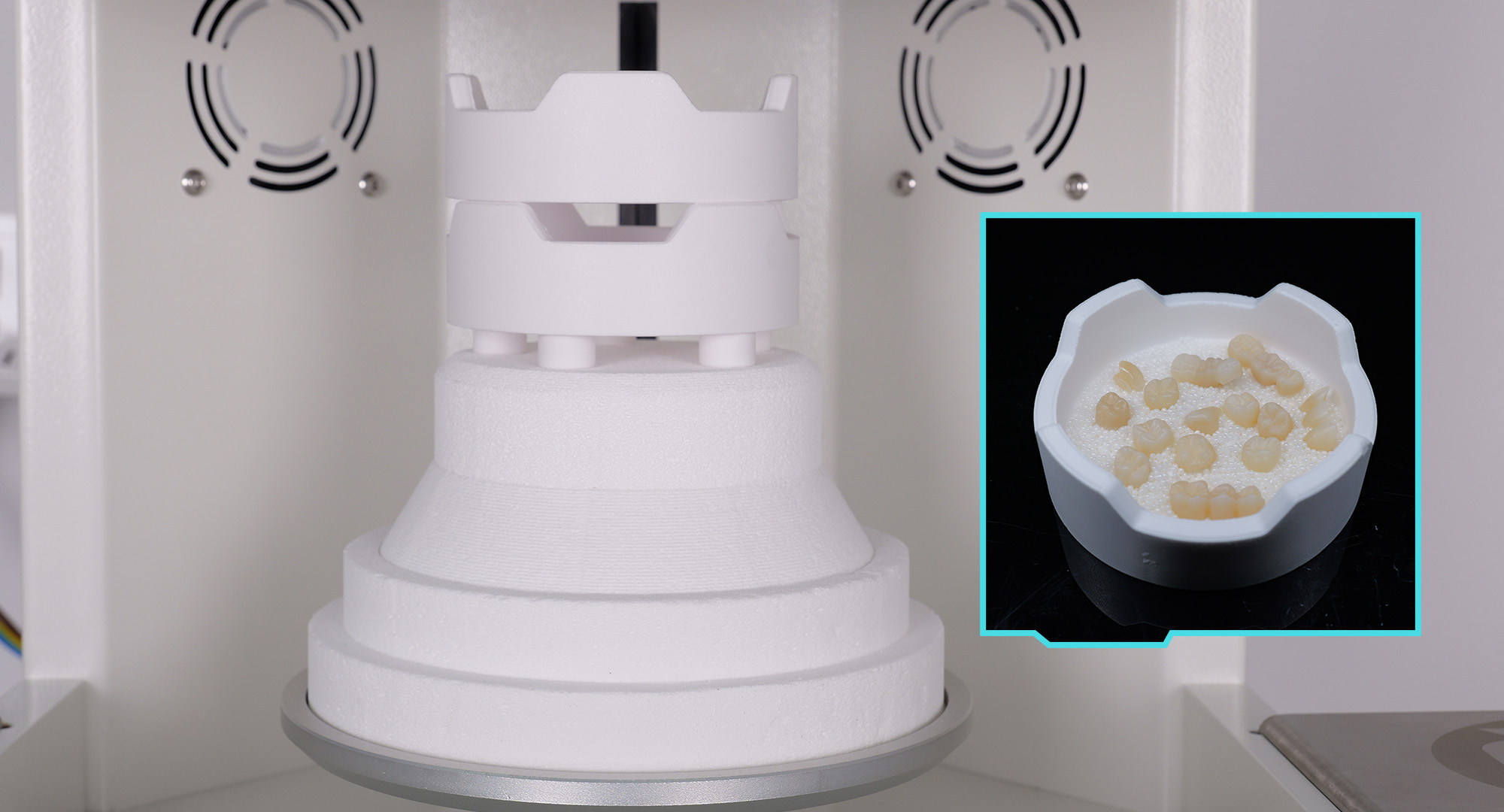

The double-layer crucible design enables simultaneous
sintering of up to 60 single crown.
PID Intelligent Temperature Control
PID intelligent temperature control ensures uniform sintering color.
Durable & Stable Sintering
Built with 4 high-purity molybdenum Silicide Rods heating elements offering purity,
oxidation resistance, and a long service life.
You choose: material, indication
Material
Maximum freedom of indication
Technical Data
GENERAL
Safe Cavity size of Furnace: diameter ≤105mm, height <80mm
outline dimension: 420mm*568mm*816mm
net weight: 73kg
BASE SYSTEM
ENVIRONMENTAL CONDITIONS

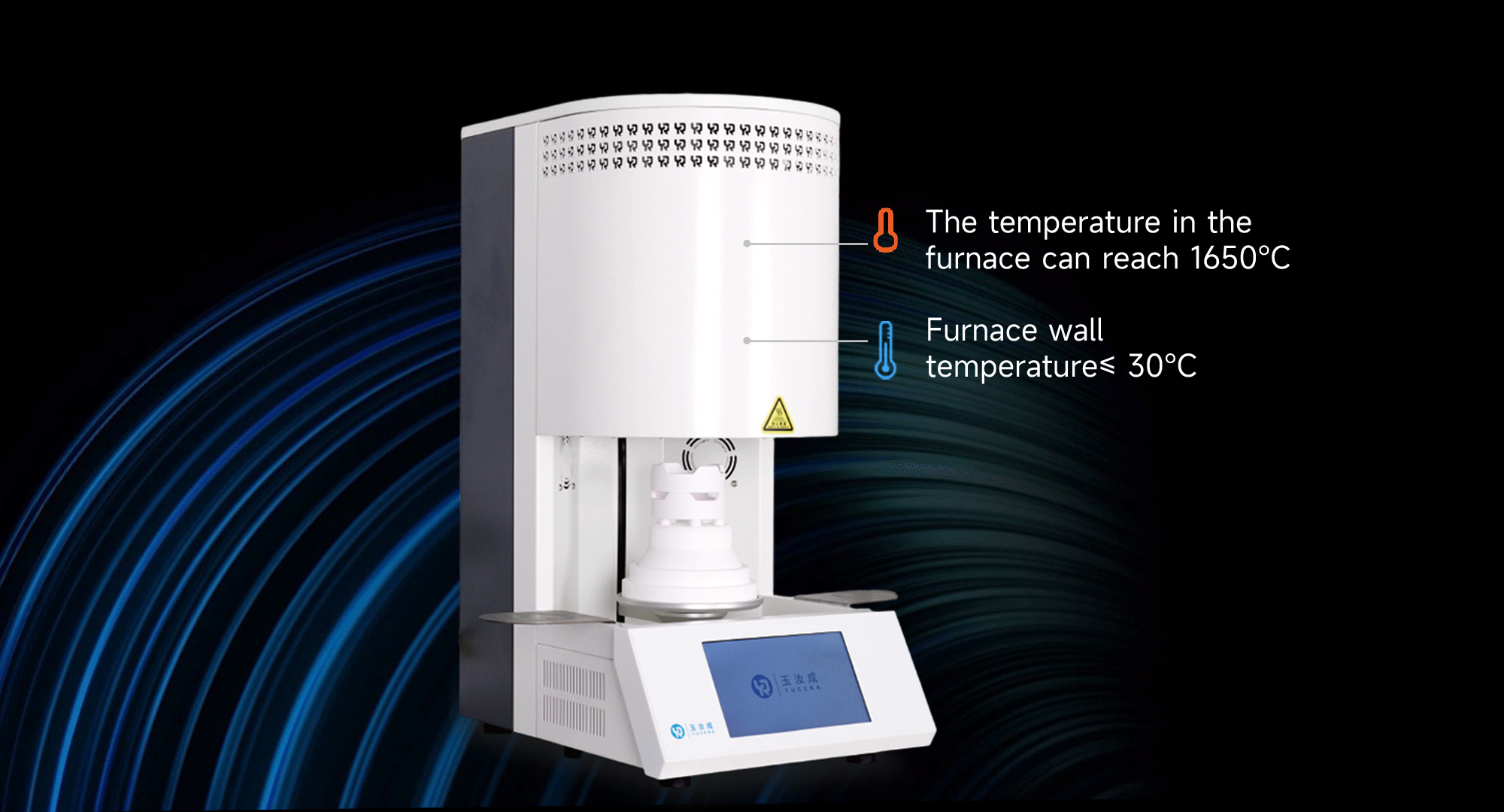

Temperature range: Room temperature-1650℃
Constant temperature accuracy: ≤±2℃
PROCESSING MODES
Power Supply:220V±10%，50/60Hz，13.6A
Power rating: 3KW
Sintering Capacity: single layer:≤30 units, double layer: ≤60 units
Number of curves: 200 curves( preset 10 fast sintering curves/189 User-Defined/1 non-editable
Thermo couple: Type B beryllium rhodium
Heating element: 4* 1850 Molybdenum Silicide Rods
Heating rate: ≤200℃/min
Standard Crucible Material: Alumina Ceramic
Fast Sintering Crucible Material: Aluminum Oxide Fiber
CONNECTION REQUIREMENTS
AUTOMATION
DIMENSIONS & WEIGHTS
Sintering furnace * 1
sintering box individual *2
Stainless steel trays individual *2
Brazier (top) individual *1
Brazier (middle) individual *1
Brazier (lower) individual *1
Zircon wrap *2
Plug (16A) individual *1
Red handled clip grasp *1
SPINDLE
APPROVALS
SHADE / THICKNESS SELECTION
YRC HS007 Product Manual
